Inline Potting Machine
Boost the efficiency of your potting operations with our Inline Potting System – an adjustable, versatile, and robust setup for high-volume potting.
Highlights
-
Large Capacity: Features a 3.5-cubic-yard, 10-foot-wide stainless-steel hopper for steady and continuous soil supplying -
Versatile Pot Handling: Can easily accommodate a variety of flats and pots up to 15 gallons, with swift changeovers between pot sizes -
Expandable Functionality: Equipped with power provisions for adding an optional off-feed conveyor, accumulation table, and liner supply conveyor – low manpower, but not fully automated
Get A Quote
Complete the form for a personalized quote tailored to your needs.
Inline Potting Machine

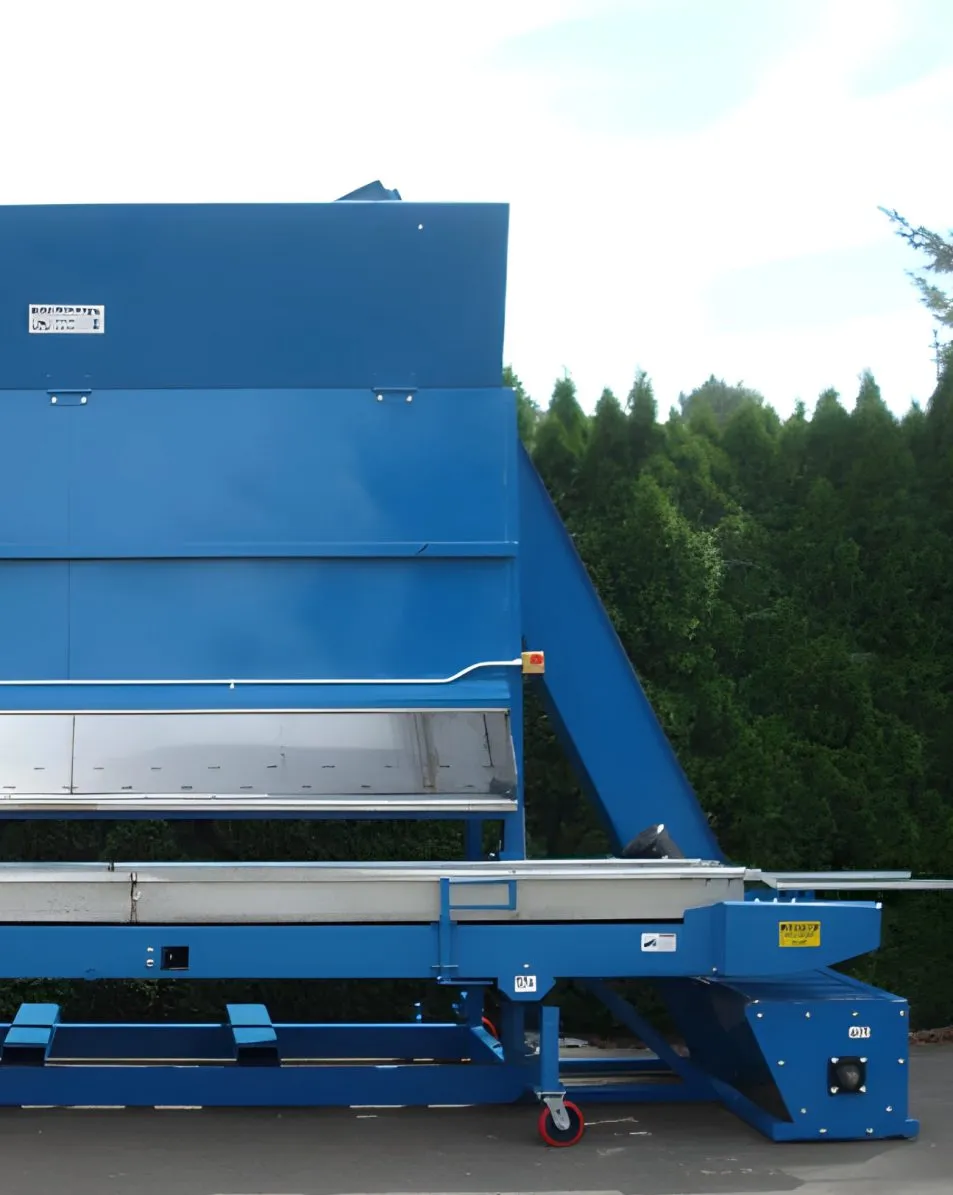

This industrial-grade potting machine boasts a massive 3.5-cubic-yard stainless-steel hopper with an approximately 10-foot-wide soil reservoir. This ensures continuous soil supply and minimal refilling interruptions. The robust 15-foot pot advance conveyor allows for smooth pot movement throughout the potting process. An integrated heavy-duty soil return mechanism efficiently collects and recirculates excess soil, thus reducing waste. The machine also features a standard 14-inch dust guard to minimize airborne dust particles for a cleaner operation.
The machine offers superior versatility. It can easily accommodate a wide range of pots up to 15 gallons. Changeovers between pot sizes are swift, thanks to the adjustable pot advance conveyor with vertical and horizontal adjustments. The adaptable soil-retaining sides and pot guides further simplify the size changes. The pot advance conveyor is run by a VFD for quickly repeatable adjust speed.
The top leveling augur automatically moves reclaimed/return soil to the point in the hopper where it is most consumed. This makes the potting machine a powerful combination of capacity, efficiency, and adjustability, ideal for high-volume potting operations.
- Large Capacity: 3.5 cubic yard stainless-steel hopper with 10’-wide soil reservoir
- Pot Advance Conveyor: 15-foot-long variable speed conveyor with capacity for fine-tuning
- Versatile Pot Handling: Can accommodate a variety of flats and pots up to 15 gallons, with capacity for fine
- Integrated Stainless Steel Soil Return: Efficiently collects and recirculates excess soil to reduce waste
- Reduced Dust: Comes with standard 14-inch dust guard
- Expandable Functionality: Equipped with power provisions for adding an optional off-feed conveyor, accumulation table, and liner supply conveyor
- Easy Transport: Forklift sleeves and optional tow package allow for effortless machine transportation and relocation
- After-Sales Support: Spare parts availability, remote technical support and on-site service available

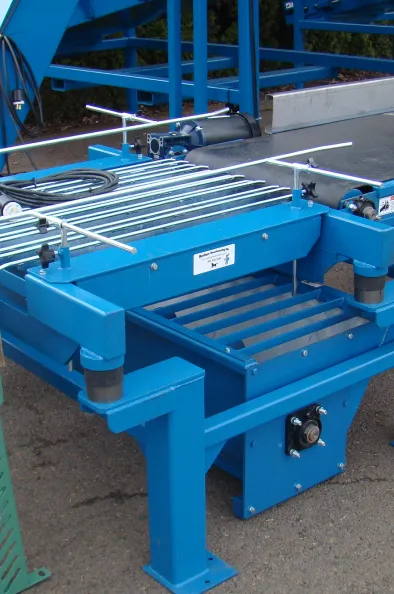

Faultline

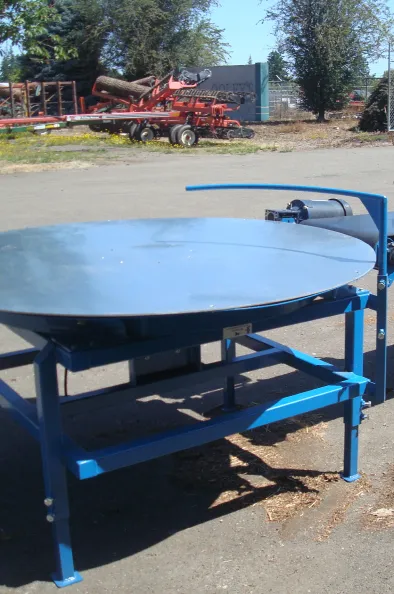

Accumulation Table
Off Feed Conveyor
Liner Supply Conveyor
